PLUGA Pumps and Motors Pvt Ltd (100% Subsidiary of Franklin Electric, USA) a leading Indian brand known for world class manufacturing & distribution of Water Pumping solutions.

Established since 1987, PLUGA has made distinguished contribution towards finest submersible water pump and motor in last three decades. Today, Pluga products are not only sold in India but Exported globally.

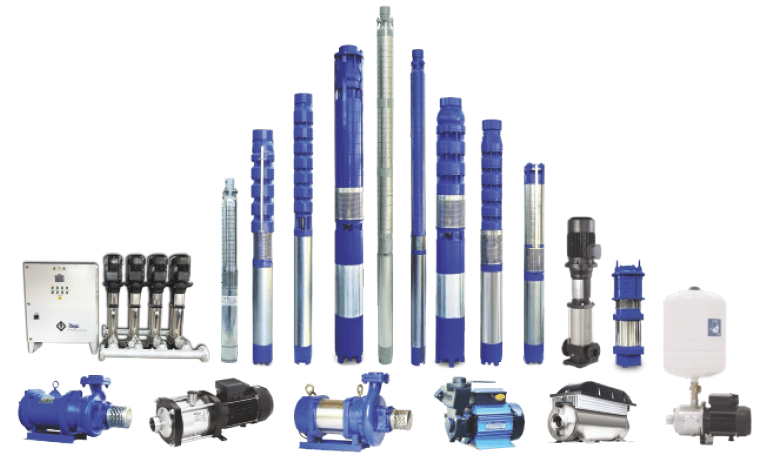

Our energy efficient product range for agriculture and domestic market includes 3” to 10” Submersible Pumps, Water filled & Oil filled Rewindable Motors, MNRE approved Solar Pumping system, Centrifugal Monoblocs, Domestic pumps VFD, controllers and Cables.

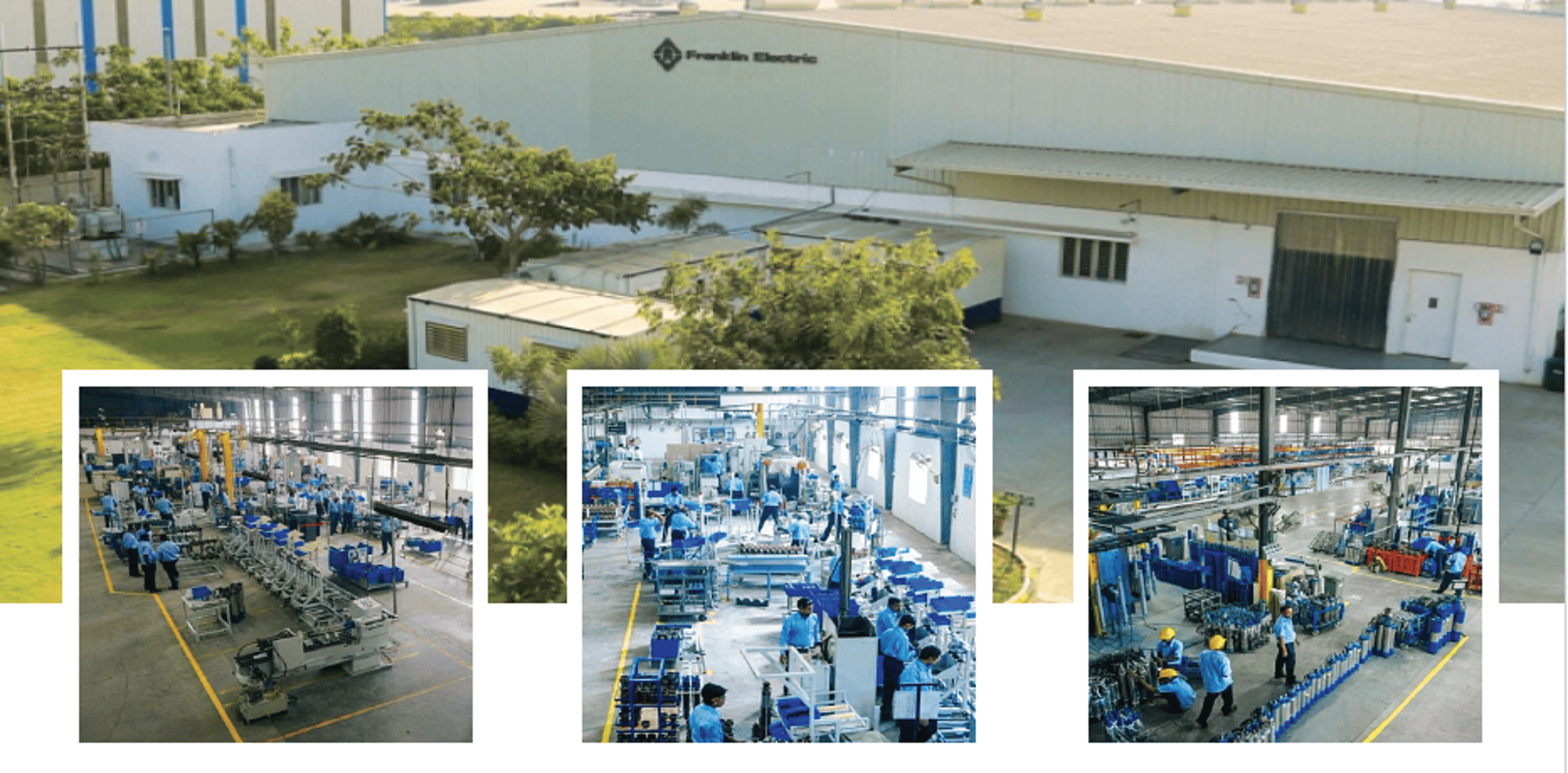

Emphasizing on the prosperity and health of the customer, we thrive to operate with a diverse portfolio of reliable and affordable pump sets delivering world-class performance through state-of the-art manufacturing facility. Our dedicated team for design manufacturing are well equipped with latest design software and advance machineries to facilitates bulk production without compromising the quality

We have World’s best Solar Simulator for capturing real time test results with auto generated test reports. All the pumps and motors are carefully designed & manufactured so that they have minimum impact on environment while production & while in use.

Introduction
Submersible bore well pumps for 4” wells (DN 100mm), 6” (DN 150mm), 8” (DN 200mm), 10” (DN 250mm) are constructed out of stainless steel AISI 304 (stainless steel AISI 316 material available on request)

Size for connection to the motor according NEMA standards up to 8” motor joining.

Delivery casing with built-in non-return valve.

Impellers:
Radial flow impellers • 4”: PSP2, PSP3, PSP5
Mixed flow impellers
• 4”: PSP8, PSP14
• 6”: PSP17, PSP30, PSP46, PSP60
• 8”: PSP77, PSP95
• 10”: PSP125, PSP160, PSP215

Connection:
Screwed pipe connection with BSP thread as standard.
NPT thread pipe connection are available on request.

Operating conditions
• Flow range : Max. 335 m 3/hr
• Head range : Max. 650 m
• Liquid temperature : 0°C to +45°C
• Max. sand content into the water : 50 g/m3

Liquid suitable for pumping:
These pumps are designed for liquids which are thin, clean, non-aggressive, non-explosive, not containing solid particles or fibres. Special versions made of stainless steel AISI 316 are available for applications involving aggressive liquids.

Curve conditions
The conditions below apply to the curves shown the following pages.

General
• Tolerances in accordance with ISO 9906,
Annex A.
• The motors used for the measurement are standard motors.
• Test results with clean cold water, without gas content. Measurements have been made with airless water at a temperature of 20°C.
• Head and power values valid for liquids with density = 1000 kg/m3 and kinematic viscosity v = max 1 mm2/s (1 cSt).
• When pumping liquids with a density higher than that of water, motors with correspondingly higher outputs must be used.
• The QH curves apply to a rated motor speed of 3450 min-1.
• The performance curves are inclusive of possible losses such as non-return valve losses.
• A safety margin of + 2 feet is recommend for the NPSH value.

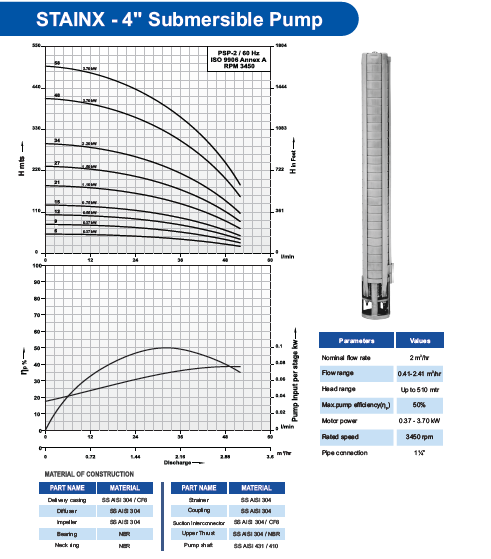

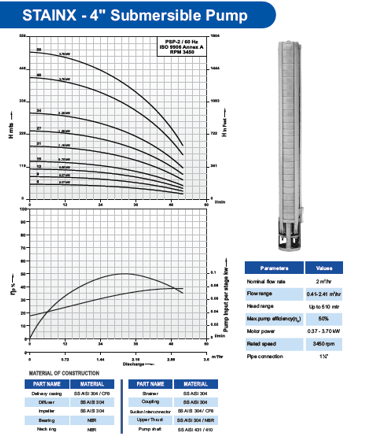

4”, 6”, 8” & 10” curves
• QH: The curves are inclusive of valve and inlet losses at the actual speed. Operation without non-return valve will increase the actual head at nominal performance by 0.5 to 1m.
• NPSH: The curve is inclusive of suction interconnector and shows required inlet pressure.
• Power curve: The power curve shows pump power input at the actual speed for one stage.
• Effciency curve: p% show pump stage effciency.
